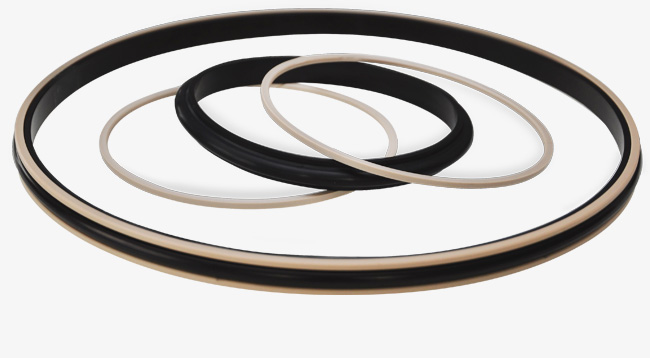

TP Piston T-Seals
T-Seals are non-spiraling and extrusion resistant to 5,000 psi with improved tolerances.
IB = Intermediate Base, WB = Wide Base
Intermediate and Wide Base T-Seals aredesigned to fit MIL-5514F o-ring glands onlyand interchange with 1 o-ring / 1 back-upring and 1 o-ring / 2 back-up ring grooves,respectively.
| SEAL INFORMATION |
| MATERIAL |
BUNA-N RUBBER SEAL - HARD PLASTIC BACK-UPS |
| TEMPERATURE RANGE |
-35° to +220° F |
| PRESSURE RANGE |
0 to 5,000 PSI |
| SPEED |
3 FT/SEC |
| PART NUMBER |
(Prefix) - (Size) |
